10,00 €

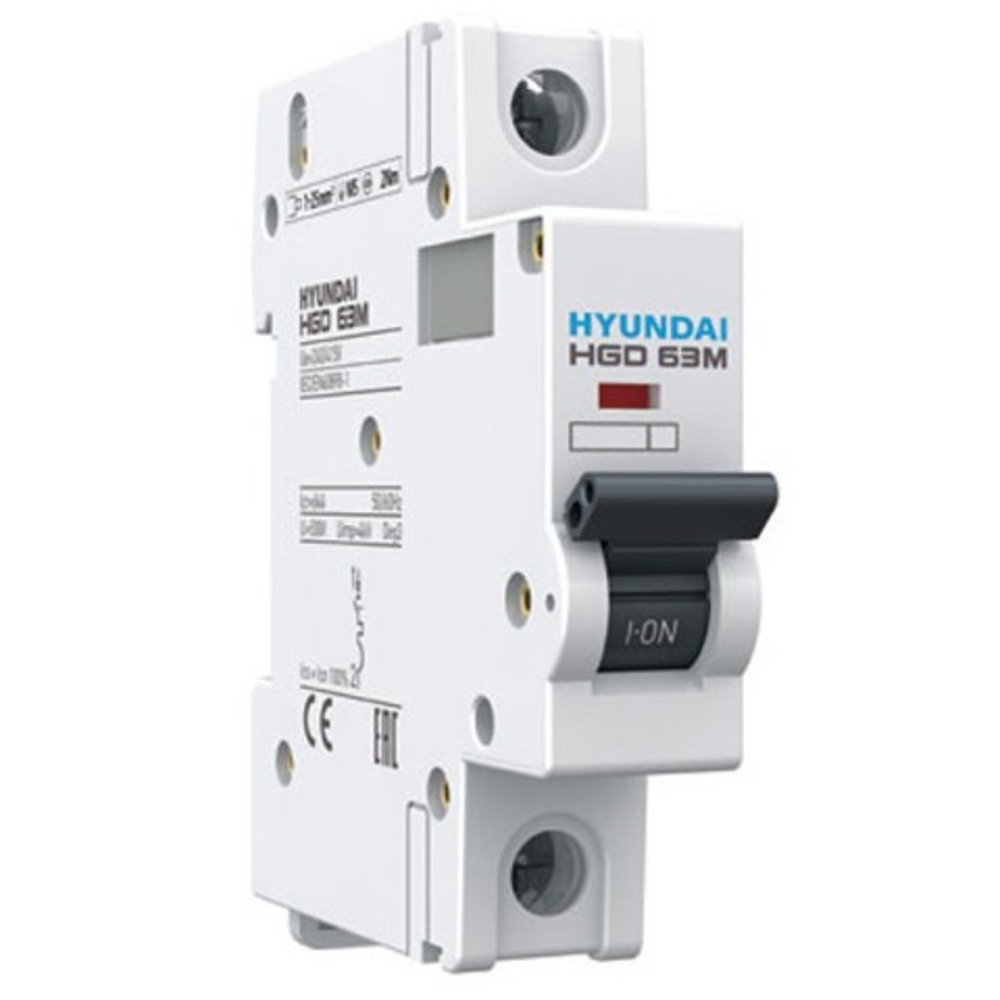

Reliable and compact HYUNDAI ELECTRIC miniature circuit breaker (MCB) designed for short-circuit and overload protection in residential, commercial, and industrial electrical installations. With a single pole (1P) configuration, 16 A C-curve rating, and 6 kA breaking capacity, this MCB ensures fast and secure disconnection under fault conditions. Manufactured to IEC/EN60898-1 standards, the robust thermoplastic housing and visual status indicator deliver durability and clear operation feedback. Easy DIN-rail mounting and broad compatibility make it ideal for distribution boards, control panels, and circuit protection systems. Perfect choice for safeguarding circuits against overloads and short circuits. The circuit breaker is manufactured in accordance with IEC/EN 60898-1 standards and features a robust, heat-resistant thermoplastic housing with a clear position indicator. DIN-rail mounting allows easy integration into electrical panels, distribution boards, and control cabinets. An excellent choice for reliable electrical circuit protection.
| Reference Standard: | EC/EN 60898-1 |
| No. of Poles: | 1 |
| Rated Current (In): | 16A |
| Rated Voltage (Ue): | AC 240/415 V |
| Rated Frequency (F): | 50/60 Hz |
| Rated Short Circuit Current (Icn): | 6 kA (Ics=100 % Icn) |
| Magnetic Release Setting: | C curve |
| Operating Temperature | -40 °C to + 55 °C |
| Mounting: | DIN Rail (35 mm × 7,5 mm) |
Fill in the order form and get a quote!
